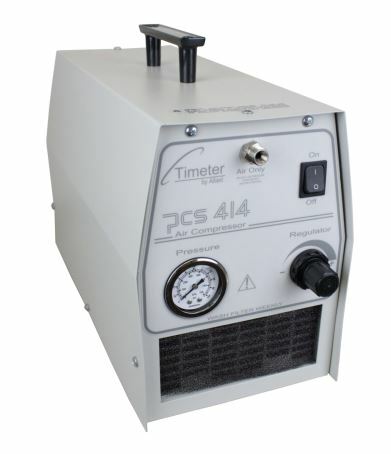

Allied PCS 414 50 psi Medical Air Compressor T14614 and T14615

The Allied Timeter® PCS 414 portable air compressor delivers hospital grade performance in a quiet and durable package. Ideal for continuous use in the professional environment, or as a sturdy homecare rental unit. The PCS 414 features a sound-dampened steel case which is designed to be quiet and lightweight while minimizing potential for damage. The PCS 414 has been engineered for long service life, and is rated for continuous or intermittent use at an output rating of 14 1pm @ 50 psig. Permanently lubricated heavy-duty bearings are designed to operate 24 hours a day, 365 days a year. The PCS 414 features a hospital grade plug and meets UL 60601—1 for institutional use. A vibration-free 0-100 psi gauge delivers accurate readings while a dial-and-lock pressure regulator ensures that the desired pressure and air flow setting remains constant. Cool—running and lightweight, the PCS 414 is ideal for use with high-pressure and low—pressure aerosol administration devices, including large and small volume nebulizers.

• Hospital Grade Performance in a Quiet, Durable Package
• Sound-dampened steel case
• Engineered for long service life
• Output rating of 14 lpm @ 50 psig
• Permanently lubricated heavy-duty bearings
• Designed to operate 24 hours a day, 365 days a year
• Vibration-free 0-100 psi gauge
• Dial-and-lock pressure regulator
• Available with an optional J bracket. The J bracket is not included on the standard model.
• Manufacturer: Allied Healthcare Products
• Manufacturer's Product ID: T14614
• Manufacturer's Product ID: T14615 (with J bracket)

Specifications

• Voltage: 115 Volt, 60 Hz
• Dimensions: 8-1/2"W x 21"D x 13-1/2"H
• Weight: 26.5 lbs.
• Output: 14 1pm @ 50 psig/ 30 1pm @ 20 psig
• Dew Point Depression: ambient air
• Outlet: DISS male (keyed for oxygen)
• Sound level: 53 dBA
• Pressure Gauge: 0-100 psi
• Pressure Regulator: 0-50 psi
• Power: 4.6 amps (nominal)
• Power Cord: #18-3 x 6'7"
• Plug: molded hospital grade
• Electrical Protection: 8.0 amp fuses (2)
• Ground Impedance: 0.1 ohms maximum
• Warranty: one year
• Approvals: ETL
• Meets HCPCS Code: E0565
