Schiller medilog® DARWIN2 Physician Enterprise Software w/ One AR-12 PLUS Holter Recorder
Price :
$14,062.50 /Pc
Schiller’s medilog® Holter system provides a comprehensive analysis of the human being as a whole. Atrial fibrillation detection, sleep apnea screening and the determination of the quality of life are just some of the exceptional features of medilog®. Designed with feedback from hundreds of cardiologists and cardiac technicians worldwide, medilog® offers unparallelel accuracy and opens up new possibilities for Holter analysis.
With medilog®DARWIN 2, you can now process a routine Holter ECG quicker and more accurately. In addition to the detection of all cardiopathological events, medilog®DARWIN2 provides a comprehensive analysis of the human being as a unit. Functional atrial diagnostics, apnea diagnostics and the determination of the quality of life are just some of the exceptionally useful features that medilog®DARWIN 2 uses to filter information from a Holter recording without any additional sensors.
With medilog®DARWIN 2, you can now process a routine Holter ECG quicker and more accurately. In addition to the detection of all cardiopathological events, medilog®DARWIN2 provides a comprehensive analysis of the human being as a unit. Functional atrial diagnostics, apnea diagnostics and the determination of the quality of life are just some of the exceptionally useful features that medilog®DARWIN 2 uses to filter information from a Holter recording without any additional sensors.
Features and Benefits
-
Pure ECG Technology records ECGs in a clearer way than is achieved with comparable products.
- Holter ECG recordings show fewer artefacts and require less time for post-processing - even for active patients.
-
Heart Rate Variability (HRV) analyzes beat-to-beat time intervals of the heart rate.
- Throughout a 24-hour period the heart rate is continuously adjusted by the autonomic nervous system in response to internal and external triggers like physical activation, stress, relaxation, recovery and sleep.
-

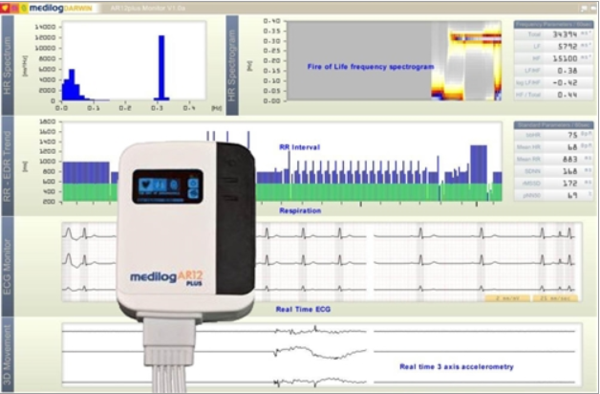

Fire of Life software analyzes and displays HRV in a new way to help judge autonomic nervous system functions.
- Indicates if therapeutic actions or lifestyle changes are successful in reducing stress and improving recovery.
- Apnea Detection allows doctor to locate all apneas at a glance using the colored apnea overview screen. No ECG beat or arrhythmia editing is necessary.
- ST-/QT-/pacemaker analysis
- QRS detection
- P-wave detection and atrial analysis
- Motion detection
- 3-channel ECG
- Max. 80 hours recording time
- Water resistant
Materials Included
- AR-12 Plus Unit
- Patient Cable
- AC Adapter
- Carry Case
- SD Memory Card
- DARWIN2 Physician Enterprise Software
- USB Dongle Version
- User Manual
Technical Specifications
- Dimensions: 2" x 3" x 1" (Without Cable)
- Weight: 4 lbs
- Protection Against Ingress of Water: IPX4 (In Protective Pouch)
-
Real-time analysis (temporal resolution)
- R Peak: 250 μs
- P and T: 2000 μs
- Pacemaker: 250 μs
-
ECG
- Dynamic Bandwidth: 12 - 14 mV, typically 13 mV
- Analogue Bandwidth: 1.6 kHz
- Lower Filter Frequency: 0.045 Hz
- Patient Cable: 7 Lead
- Channels: 3
- Sampling Rate: 4000 - 8000 Hz
- Recording Rate AR12 Plus: 125, 250 or 1000 Hz (with 3-lead patient cable: 250 Hz)
- Resolution: 12 bit
-
Acceleration Sensor
- Channels: 3
- Sensitivity: 200, 300 or 800 mV/g
-
Power Supply:
- Vin (Supply Voltage) 1 x 1.5v
- Battery: AAA Battery
- Internally Occurring Voltage: 3 - 12V, typically 3V
-
Operating Duration:
- Approx. 80 Hours at Recording Rate of 125 Hz
- Approx. 50 Hours at Recording Rate of 250 Hz
- Approx. 48 Hours at Recording Rate of 1000 Hz
-
Ambient Conditions (Storage and Operation)
- Temperature: 10 - 45°C
- Humidity, Non Condensing: 10 - 90 %RH
- Atmospheric Pressure: 700 - 1060 hPa
Reimbursement Information
- Typical Cardio Holter Reimbursement: $92.59. CPT 93224, ICD9s: 780.2 Syncope, 780.4 Dizziness, 785.0 Tachycardia Unspecified, 785.1 Palpitations, 786.50 Chest Pain, 786.51 Precordial Pain, 786.52 Painful respiration, 786.59 Chest discomfort, and others.
