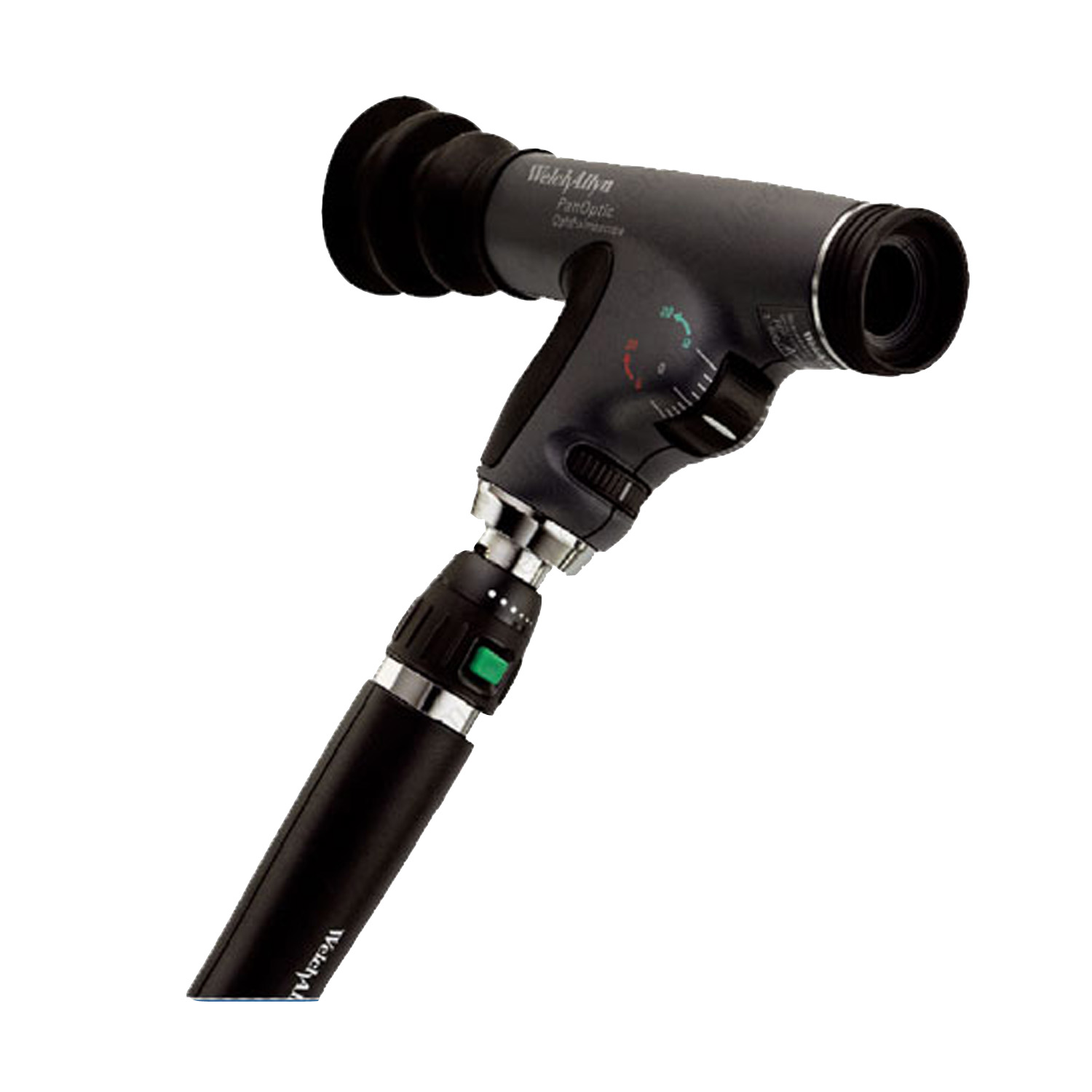

Welch Allyn PanOptic Ophthalmoscope


Price : Get Price Quote
100000 Pc Available
Add To Cart

New Welch Allyn PanOptic incorporates an innovative and patented new optical design called Axial PointSource Optics. Innovative optics for panoramic views of the fundus.This enabling technology makes it easier to enter small pupils and provides a dramatically wider, more panoramic view of the fundus that's 5X larger than ever before achieved with a standard ophthalmoscope in an undilated eye.

Features

  • Patented new Axial PointSource Optics.
  • Illumination system converges the light to a point at the cornea, allowing easy entry into small, undilated pupils.
  • The illumination pathway then diverges to the retina, illuminating a very wide area of the fundus.
  • Viewing system enables the operator to view the illuminated area on virtually the same axis, creating the widest field-of-view attainable.
  • Provides a 5-times larger view of the fundus than ever before achieved with a standard ophthalmoscope in an undilated eye.
  • Enables a 25-degree field-of-view vs. the standard 5-degree field-of-view.
  • Increases magnification by 26% over a standard ophthalmoscope.
  • Patented Glare Extinguishment System prevents interference from unwanted glare and reflections.
  • New Halogen HPX lamp provides bright, white light.
  • Greater working distance improves the comfort of both examiner and patient.
  • Works with all existing Welch Allyn 3.5v power sources (battery handle or wall transformer), saving additional investment.
  • The patient eyecup establishes and maintains proper viewing distance, provides stabilization for the view, is a pivoting point for leverage in panning around the retina, occludes ambient light, and helps with orientation.
  • The dynamic focusing wheel adjusts the focus in a continuous, smooth action for more precise control and the optimum view with a focusing range of -20 to +20 diopters.
  • The aperture dial has micro, small, and large spot sizes, a slit aperture, and red free filter, and cobalt blue filter with add-on corneal magnifiying lens.
  • The ergonomic design of the built-in, soft grip handle provides maximum comfort, balance, and access to controls.

Key Components

  • PanOptic Patient Eyecup
  • Patient Eyecup (pkg of 5)
  • Halogen HPX Lamp
  • Corneal Viewing Lens for PanOptic Ophthalmoscope
  • PanOptic Diagnostic Set Carrying Case

Patent Numbers

  • Patent 6,065,837, others pending.

Approvals:

  • IEC / EN60601-1
  • IEC / EN60601-1-2, CAN/CSA-C22.2 No. 601.1-M90, UL 2601-1, Second Edition, 1997

Replacement Parts

  • PanOptic Patient Eyecup
  • Halogen HPX Lamp
  • Patient Eyecup (pkg of 5)

Accessories

  • Corneal Viewing Lens for PanOptic Ophthalmoscope
  • Patient Eyecup (pkg of 5)
  • PanOptic Diagnostic Set Carrying Case
  • Halogen HPX Lamp
  • PanOptic Softcase
